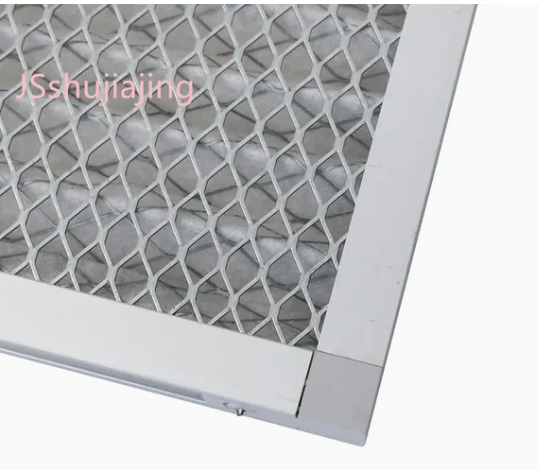

Medium Efficiency Filter
Shu Jia Jing
| Availability: | |
|---|---|
| Quantity: | |
The function of a medium-performance filter is to remove dust and particles with a size of 1 to 10 microns from the air. The medium-performance filter is used as a pre-treatment for high-performance filters and also serves as the final filter in the AHU (Air Handling Unit) of a building. In the air conditioning system of a building, the polluted dust in the externally introduced and internally circulated air is first removed by the pre-filter. However, tiny dust particles can still pass through it and enter the indoor environment. As a result, the indoor cleanliness cannot be maintained, which leads to a decrease in work efficiency and the production of defective products. Therefore, a medium-efficiency filter is installed after the pre-filter to ensure the cleanliness of the indoor environment. Commonly used types are the hanging type.

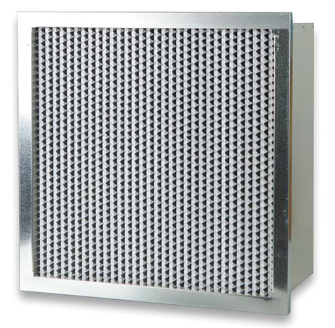

| name | Partition plate filter | field of application | Semiconductor, display, hospital, pharmaceutical, thin film manufacturing plants |
| type | BOX,FRANGE | framework | Galvanized steel sheet |
| Filter material | Fiberglass, synthetic materials | Separator | Aluminum sheet or kraft paper |
| sealant | Polyurethane or hot melt adhesive | gasket | EPDM |
| filtration efficiency | 65%, 85%, 95% (according to the NBS standard) According to the EN779 standard: F7, F8 According to the ASHRAE52.5 standard: MERV13, MERV14 grades | Operating temperature/humidity | 80℃（176℉） 90%RH |
The function of a medium-performance filter is to remove dust and particles with a size of 1 to 10 microns from the air. The medium-performance filter is used as a pre-treatment for high-performance filters and also serves as the final filter in the AHU (Air Handling Unit) of a building. In the air conditioning system of a building, the polluted dust in the externally introduced and internally circulated air is first removed by the pre-filter. However, tiny dust particles can still pass through it and enter the indoor environment. As a result, the indoor cleanliness cannot be maintained, which leads to a decrease in work efficiency and the production of defective products. Therefore, a medium-efficiency filter is installed after the pre-filter to ensure the cleanliness of the indoor environment. Commonly used types are the hanging type.
| name | Partition plate filter | field of application | Semiconductor, display, hospital, pharmaceutical, thin film manufacturing plants |
| type | BOX,FRANGE | framework | Galvanized steel sheet |
| Filter material | Fiberglass, synthetic materials | Separator | Aluminum sheet or kraft paper |
| sealant | Polyurethane or hot melt adhesive | gasket | EPDM |
| filtration efficiency | 65%, 85%, 95% (according to the NBS standard) According to the EN779 standard: F7, F8 According to the ASHRAE52.5 standard: MERV13, MERV14 grades | Operating temperature/humidity | 80℃（176℉） 90%RH |
