Introduction：
1. Long glass fiber is made by non-fabric method, with large air permeability and small resistance, and the efficiency of over-spray dust capture is good.
2.Applied to surface spray high quality paint mist filtration, high capture rate, PA-50/60/PA-100 especially suitable for open heat recovery system.
3. High strength incremental glass fiber structure with green windward and white windward.
4.Low compression properties keep its appearance unchanged, so that its filter fiber is completely conducive to the storage of oil mist dust.
5. Non - flammable, can withstand temperature of 170 degrees Celsius.

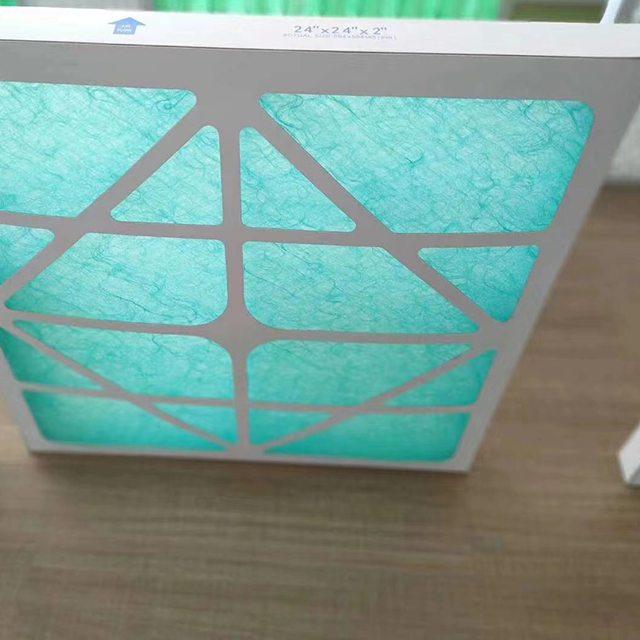

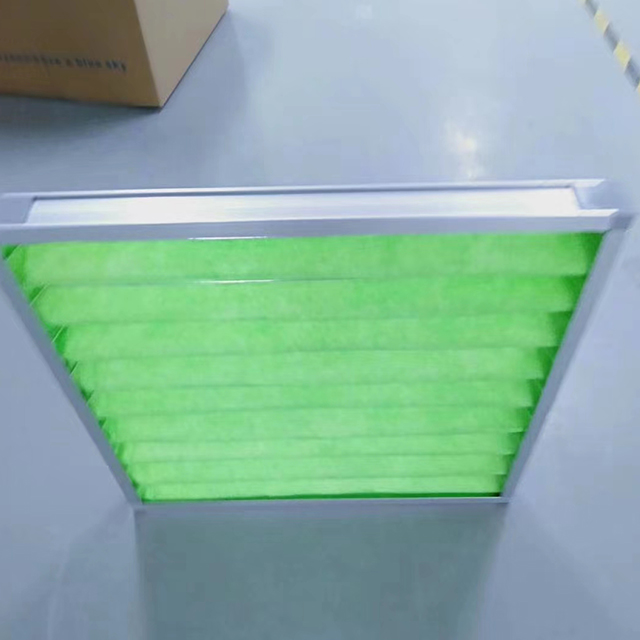

6. The outer frame can be matched with paper outer frame and galvanized iron frame or aluminum frame material.
Performance classification:
Model | PA-50/60 | PA-100 |
Average Arrestance; | 92%-96% | 97%-99% |
Initially Resistance Final Resistance | 15Pa
250Pa | 20Pa
280Pa |
Air velocity | 0.7-1.75m/s | 0.7-1.75m/s |
Dust holding at tested final | 3200-3600g/m2 | 3600-4900g/m2 |
Temp.resistance，constant | 170du°C | 170°C |
Temp，short peaks | 190°C | 190°C |
Normal thickness | 50/60mm | 100mm |
Roll sizes standard | 0.8*20 1.0*20 2.0*20 | 0.8*20 1.0*20 2.0*20 |
PS：Variety of sizes and thickness，according the customer’s requirement.
Application：
Applied to many industry such as pollution controlling，public construction，air-condition，electronic，pharmacy，food and so on.
