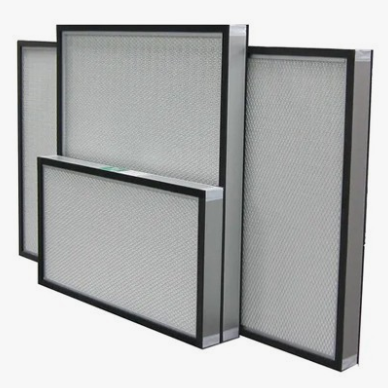

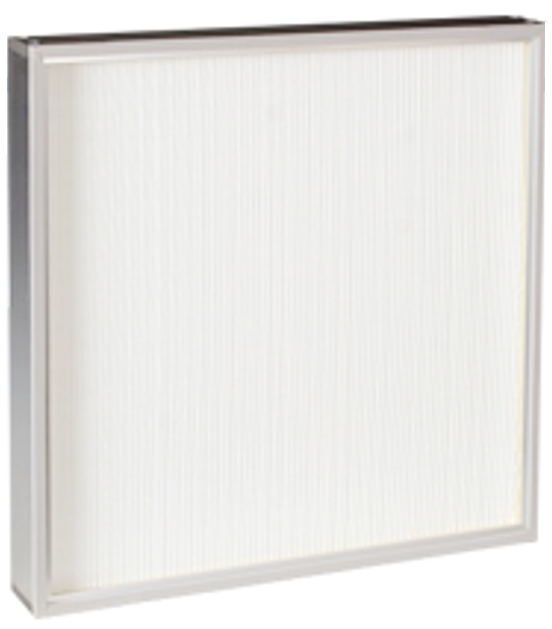

ULPA Filter
Shu Jia Jing
| Availability: | |
|---|---|
| Quantity: | |
This product is designed and manufactured with an ultra-thin (Ultra Slim) design and can still maintain excellent performance under the condition of 0.35 meters per second. Due to its design that enables a large air volume and low pressure loss, it is easy to be applied to the Fan Filter Unit (FAN FILTER UNIT) and can maintain a cleanliness level of Class 100 and below. Moreover, the product itself has corrosion resistance and acid resistance, and the maintenance and management cost is low. In terms of appearance, it can be integrated with the cleanroom equipment, making it a highly favored product for cleanroom applications.
| Name | ULPA Filter (Partitionless Type) | field of application | Cleanrooms below CLASS 1 |
| Type | BOX，GEl，FFU， EFU，BFU | framework | Galvanized iron sheet, galvanized steel sheet, Stainless steel plate, ABS, PVC, etc |
| Filter material | glass fiber | Separator | E.V.A.， Olefin |
| sealant | Silicone | gasket | EPDM，Nitrile rubber |
| filtration efficiency | ≥99.999% | Operating temperature and humidity | 60℃（140℉） 90%RH |
This product is designed and manufactured with an ultra-thin (Ultra Slim) design and can still maintain excellent performance under the condition of 0.35 meters per second. Due to its design that enables a large air volume and low pressure loss, it is easy to be applied to the Fan Filter Unit (FAN FILTER UNIT) and can maintain a cleanliness level of Class 100 and below. Moreover, the product itself has corrosion resistance and acid resistance, and the maintenance and management cost is low. In terms of appearance, it can be integrated with the cleanroom equipment, making it a highly favored product for cleanroom applications.
| Name | ULPA Filter (Partitionless Type) | field of application | Cleanrooms below CLASS 1 |
| Type | BOX，GEl，FFU， EFU，BFU | framework | Galvanized iron sheet, galvanized steel sheet, Stainless steel plate, ABS, PVC, etc |
| Filter material | glass fiber | Separator | E.V.A.， Olefin |
| sealant | Silicone | gasket | EPDM，Nitrile rubber |
| filtration efficiency | ≥99.999% | Operating temperature and humidity | 60℃（140℉） 90%RH |
